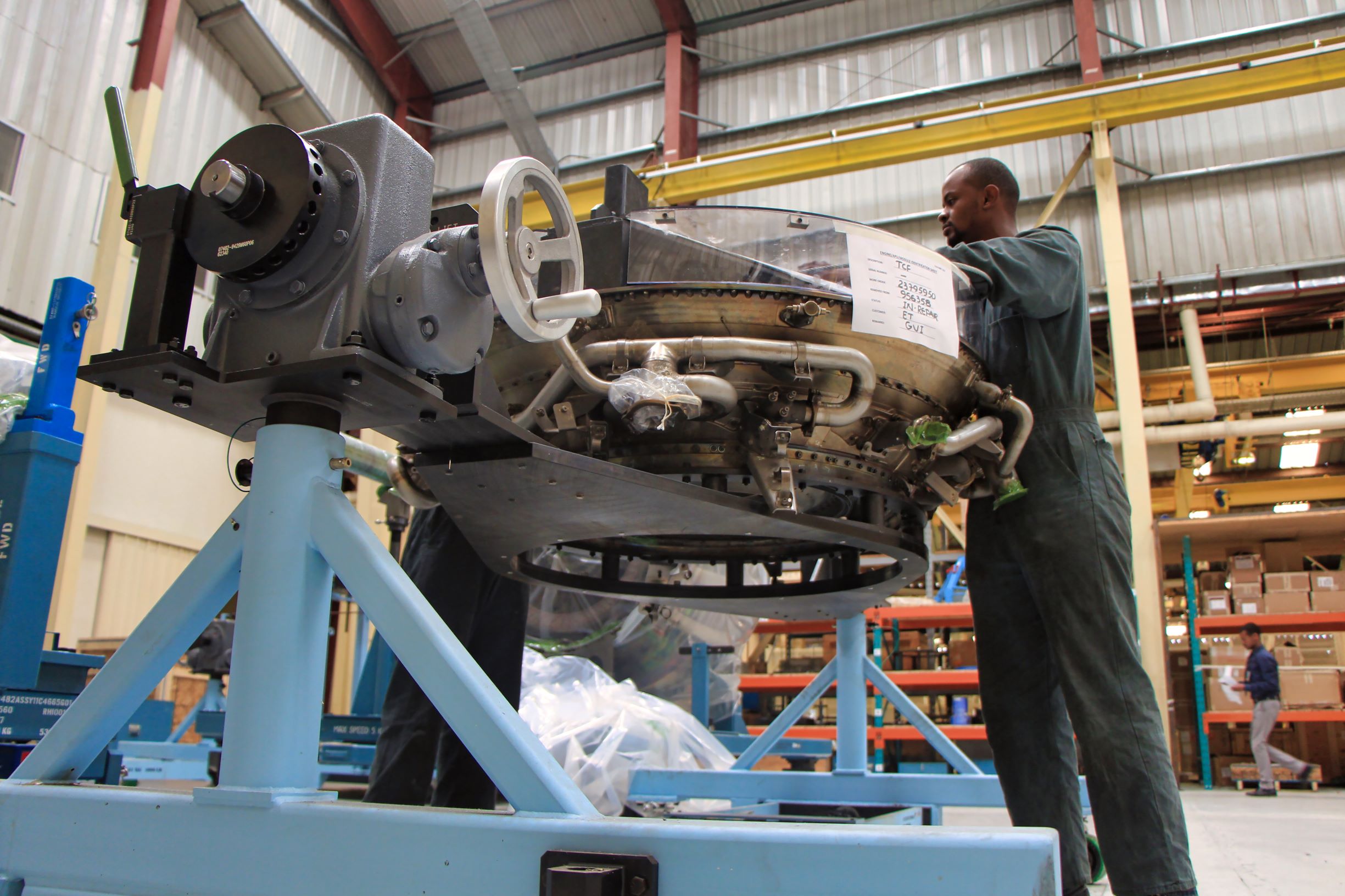

Ground Support Equipment
ENGINE STANDS
GE
GE9X
GEnx-1B Rollover
GEnx-1B Split
GEnx-2B Rollover
GEnx-2B Split
GE90
CFM INTERNATIONAL
LEAP-1A
LEAP-1B

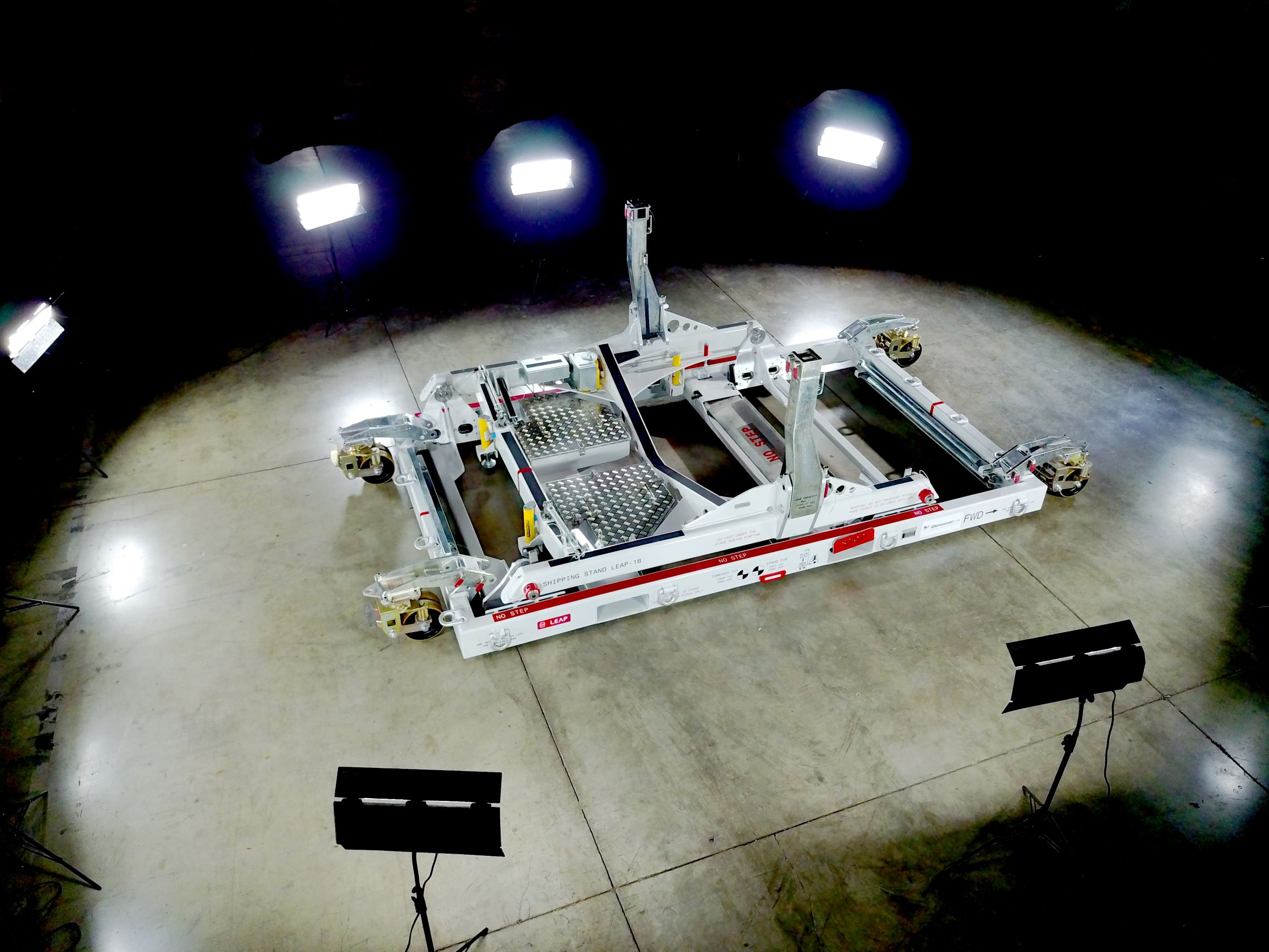

Rhinestahl's Leap Engine Stand
EXPERIENCED ENGINEERING AND QUALITY TEAMS
We oversee and manage the entire engine stand manufacturing process. We made it a long-term strategy at Rhinestahl to ensure we are not only meeting OEM quality standards but enhancing them with Rhinestahl’s internal processes to provide the best stand in the industry.
Engine Shipping Stand Specifications
GE9X Specifications
- P/N 8C2604P04
- Empty 15,000 lbs
- 125″W x 244″L x 109″H

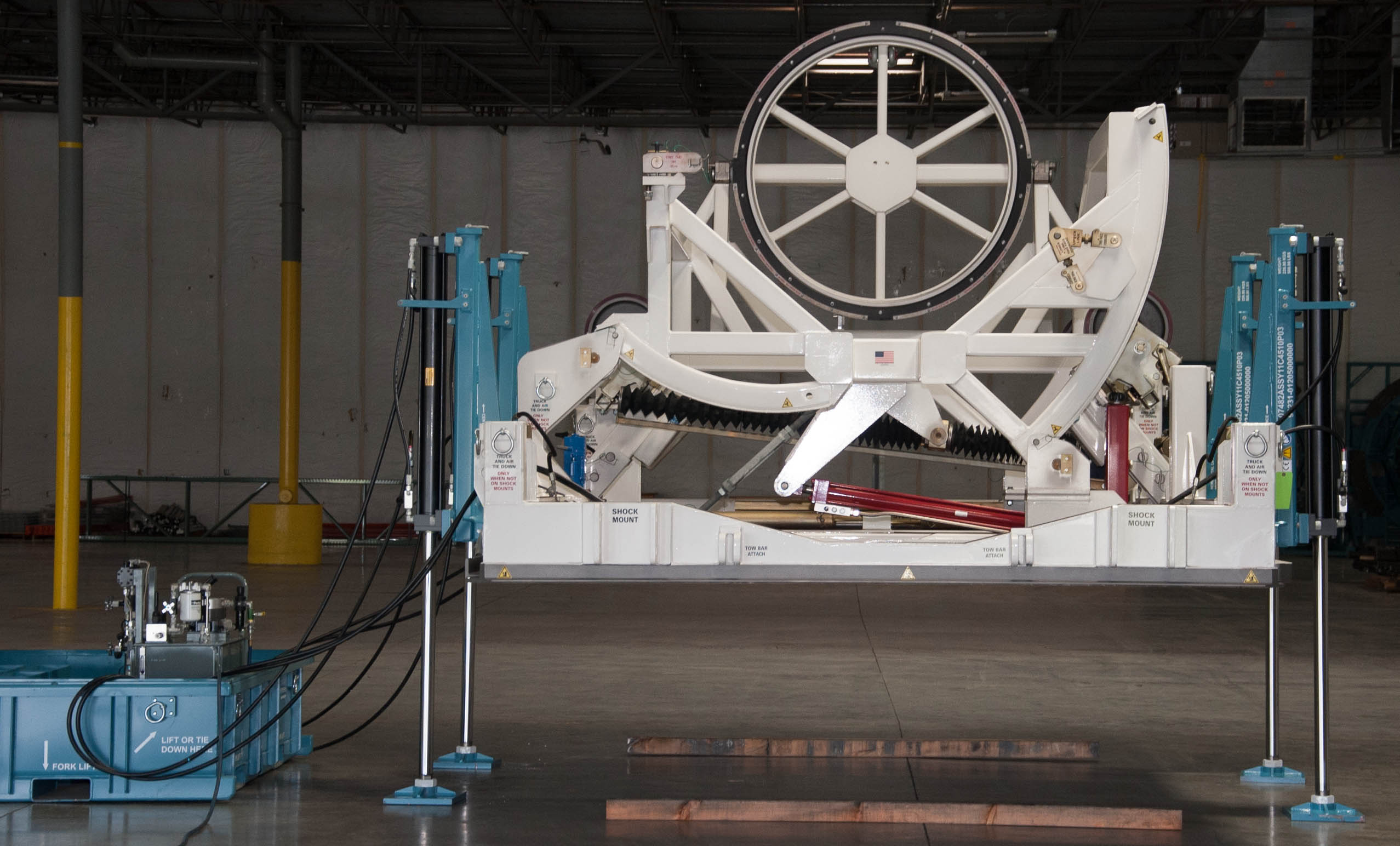

GEnx-1B Rollover Specifications
- P/N 11C4568
- Empty 15,700 lbs
- Loaded Full Engine 29,000 lbs
- Full Engine Rolled 128″W x 122″H x 205″L
- Propulsor Rolled 126″W x 98″H x 194″L
GEnx-1B Split Specifications
- P/N 11C4576
- Empty 15,600 lbs
- Loaded Propulsor 26,800 lbs
- Loaded Full Engine 28,900lbs
- Full Engine 141″W x 142″H x 220″L
- Propulsor 102″W x 122″H x 196″L
GEnx-2B Rollover Specifications
- P/N 11C4569
- Empty 15,100 lbs
- Loaded Full Engine 27,400 lbs
- Full Engine Rolled 126″W x 121″H x 208″L
- Propulsor Rolled 126″W x 106″H x 208″L
GEnx-2B Spilt Specifications
- P/N 11C4577
- Empty 15,600 lbs
- Loaded Propulsor 24,800 lbs
- Loaded Full Engine 27,800lbs
- Full Engine 126″W x 138″H x 223″L
- Propulsor 101″W x 123″H x 206″L
Trent 700 Specifications
- P/N RRT095052
- Empty 14,180 lbs
- Loaded Full Engine 32,280 lbs
- 3175mm W x 5430mm L x 2206mm H
Trent 1000 Specifications
- P/N RRT075000
- Empty 7,900 lbs
- Loaded Full Engine 23,600 lbs
- 2440mm, 4630mm, 2250mm
Trent XWB Specifications
- P/N RRT102554
- Empty 8,246 lbs
- Loaded Full Engine 27,064 lbs
- 2525mm W x 5080mm L x 2505mm H
LEAP-1A Specifications
- P/N 956A7644G03
- Fully meets all P1TF55 and drawing requirements which include: 2X Load Testing, Welding Certification, and Non-destructive testing and inspection with full documentation
- Meets S-523 Quality Specifications
- Empty 6,250 lbs
- Loaded Full Engine 12,841 lbs
- Wheels Up 102” W x 226” L x 98.7” H
- Wheels Down 102” W x 226” L x 103” H
LEAP-1B Specifications
- P/N 956A8600G02
- Fully meets all P1TF55 and drawing requirements which include: 2X Load Testing, Welding Certification, and Non-destructive testing and inspection with full documentation
- Meets S-523 Quality Specifications
- Empty 6,250 lbs
- Loaded Full Engine 12,964 lbs
- 98” W x 188” L x 61” H
Tooling and Engine Stand Management
1. Full life cycle management
2. Fleet level delivery management tooling
3. On-site refurbishment and repair
